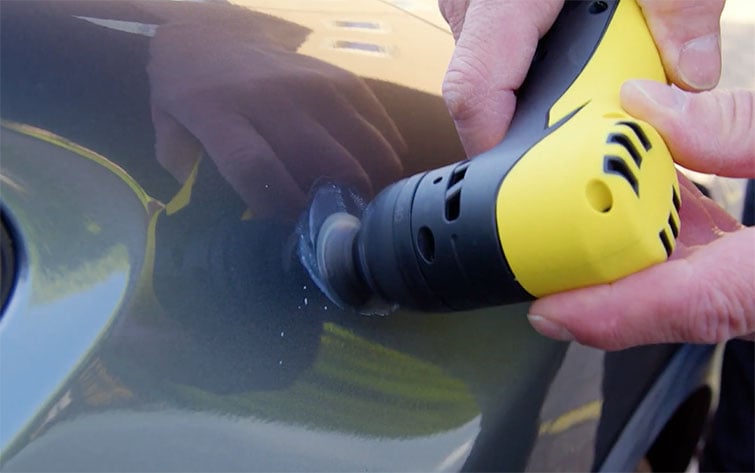

Spot repair polishing is the controlled refinement of a localised paint repair to remove surface defects, normalise gloss and texture, and visually blend newly refinished paint into surrounding OEM finishes without unnecessary clearcoat removal.

Although often treated as a minor finishing task, spot repair polishing is one of the most technically demanding stages of any SMART or localised repair. The painted area may be small, but the risks are concentrated. Clearcoat thickness is limited, heat builds rapidly, and any inconsistency at the repair edge is immediately visible under inspection lighting.

This guide explains why the process differs from full-panel polishing, what causes repairs to fail visually, and how polishing should be approached to produce a genuinely invisible result rather than one that merely looks acceptable on first inspection.

What Makes Spot Repair Polishing Different from Full-Panel Polishing?

Spot repair polishing is more risky than full-panel polishing because it is carried out on non-uniform clearcoat thickness, in confined areas where heat accumulates quickly and pressure is harder to distribute evenly.

In a spot repair, clearcoat is applied locally and blended outwards. As a result, the film build is rarely consistent across the working area. At the centre of the repair, clearcoat may be relatively generous, while at the blend zone it can taper rapidly. Polishing across this transition requires restraint, because the machine does not register the difference even though the paint does.

Geometry further complicates matters. Spot repairs frequently occur on bumper corners, swage lines, door edges, and other complex shapes. These areas naturally concentrate pressure and friction, increasing heat generation even at moderate machine speeds. On plastic substrates, reduced thermal mass means heat dissipates more slowly, further narrowing the margin for error.

For these reasons, spot repair polishing is less about correction efficiency and more about controlled refinement.

What Is Polishing Actually Doing in a Spot Repair?

Polishing in a spot repair performs three distinct but interrelated functions, each of which influences whether the repair disappears or draws attention.

First, polishing removes surface defects introduced during refinishing. Dust nibs, light texture irregularities, and minor clearcoat distortion are common in localised paint application. These defects must be addressed to restore optical clarity, but they should not dictate how much surrounding paint is removed.

Second, polishing normalises surface texture and gloss. Fresh clearcoat often reflects light differently to surrounding OEM paint, even when colour match is excellent. Polishing refines the repaired surface so that light behaves consistently across the repair boundary, eliminating the visual cue that the panel has been altered.

Third, polishing blends the repair into the surrounding panel. In spot repair polishing, the transition zone matters more than the centre of the repair. Over-refining the repaired area while ignoring adjacent paint often creates a visible halo, where the repair appears glossier or flatter than its surroundings. Effective polishing works outward, gradually equalising the finish until no boundary can be detected.

Why Surface Preparation and Denibbing Matter So Much

Polishing should refine the surface, not compensate for unresolved defects. This principle is especially important in spot repairs.

Dust nibs are isolated high points in the clearcoat. If they are not removed before polishing, the surrounding surface must be polished down to their level. In a localised repair, where clearcoat is already limited, this approach dramatically increases the risk of strike-through and edge failure.

Proper denibbing removes these high points in isolation, allowing polishing to focus on refinement rather than correction. Once denibbing is complete, the surface should be cleaned thoroughly and inspected under strong directional lighting. At this stage, the technician should be able to clearly identify the true working area and avoid unnecessary polishing beyond it.

This discipline is one of the defining differences between reliable spot repair results and inconsistent ones.

Heat, Control, and Polishing in Confined Areas

The biggest technical risk in spot repair polishing is excessive heat buildup caused by confined working areas and limited thermal dissipation.

Because the repair area is small, friction energy is concentrated rather than spread across a panel. Clearcoat softens sooner, becomes more responsive to pressure, and can be damaged before there are obvious visual warning signs. Heat can also temporarily mask defects, leading to false confidence during inspection.

Effective spot repair polishing relies on short working passes, controlled pressure, and frequent surface checks. Sustained high speeds or long polishing cycles that may be acceptable on full panels quickly become problematic in localised repairs. Even with appropriate tooling, restraint remains essential.

Compounds, Pads, and the Risk of Over-Correction

A common misconception is that aggressive correction can always be refined later. In spot repairs, this approach often creates more problems than it solves.

Aggressive compounds increase polishing time, generate more heat, and raise the likelihood of overworking the centre of the repair while neglecting the blend zone. In most spot repairs, the safest approach is a compound that cuts efficiently, finishes cleanly, and allows the operator to stop early.

Pad size and density influence control as much as cut. Smaller pads improve accuracy and reduce unintended edge contact, while inappropriate pad softness or collapse can concentrate pressure unpredictably. Matching pad behaviour to the repair geometry is therefore critical.

Why Spot Repair Polishing Fails Visually

When spot repairs fail, the causes are usually consistent.

Edge damage occurs when pressure and heat are allowed to build where clearcoat is thinnest. Gloss mismatch appears when the repaired area is refined in isolation rather than blended into surrounding paint. Visible halos form when attention is focused on the defect rather than on equalising the entire transition zone.

These failures are rarely caused by poor materials. They are the result of treating spot repair polishing as scaled-down panel polishing instead of a distinct finishing discipline.

Inspection, Cooling, and Final Assessment

Final inspection should always be carried out after the surface has cooled. Heat can temporarily improve gloss and mask micro-marring, giving an inaccurate impression of finish quality. Allowing the panel to stabilise ensures the repair will remain visually consistent once the vehicle leaves the bodyshop.

Inspection under multiple light sources and from different viewing angles is essential. A repair that disappears under one light but reappears under another has not been fully resolved.

Bringing It All Together

Spot repair polishing is not about maximising gloss or chasing perfection in isolation. It is about managing risk, understanding localised paint behaviour, and refining only what needs to be refined. When approached with control and intent, polishing transforms a localised repair into one that is genuinely invisible, not just superficially tidy.
